Guide to Understanding LED Screens: Key Terms and Considerations

displaysLED screens are becoming a staple in many industries, from advertising to entertainment to public information displays. However, if you’re new to this technology, it can be overwhelming to understand all the technical jargon that comes with choosing an LED screen. This article will help demystify some of the most commonly used terms in the world of LED displays and guide you in making an informed decision when choosing the right screen for your needs.

What Does “P” Mean in LED Screens?



One of the most important terms you’ll come across when selecting an LED screen is the “P” value, often referred to as the pixel pitch. Pixel pitch (P) is the distance, measured in millimeters, between the centers of two adjacent pixels (LED beads) on the screen. It directly impacts the screen’s resolution, clarity, and viewing experience.



– Smaller P values (e.g., P1.2, P1.5) mean that the pixels are packed closer together. This results in a higher pixel density, leading to a clearer and more detailed image, especially when viewed from a close distance.

– Larger P values (e.g., P4, P8) indicate that the pixels are further apart, which can be ideal for large-scale outdoor displays where the audience is viewing from a distance.



In summary, the smaller the P value, the denser the pixel arrangement, and the clearer the image, particularly for close viewing. A larger P value is better suited for displays where the audience will be farther away, such as large outdoor billboards.

Understanding Resolution in LED Screens



Resolution refers to the number of pixels in both horizontal and vertical dimensions that an LED screen can display. It’s a critical factor in determining the sharpness and detail of the images or videos shown on the screen.



– High resolution means more pixels, which results in better image quality and finer detail. For example, a screen with higher resolution will display sharp, clear images even when showing intricate graphics.

– Low resolution, on the other hand, means fewer pixels, leading to more pixelated or blurry images, especially noticeable when viewed up close.



Resolution can be described in terms of both the total pixel count (e.g., 1920 x 1080 pixels) and the P value mentioned earlier. The combination of the right P value and resolution ensures that you have the desired visual quality for your specific application.



What Is the Best Viewing Distance?



The ideal viewing distance for an LED screen depends on its P value. The closer the pixels are (i.e., the smaller the P value), the closer the audience can be to the screen without noticing pixelation. Here’s how to determine the best viewing distance based on pixel pitch:



– Close Viewing Distance: For a screen with a smaller P value (e.g., P1.2 or P1.5), the screen can be viewed from a shorter distance without sacrificing image quality. For example, standing 1.2 meters or 1.5 meters or more away from the screen.

– Longer Viewing Distance: For screens with a larger P value (e.g., P4, P6), a greater distance is required to fully appreciate the screen’s visual quality without seeing individual pixels. For example, standing 4 meters or 6 meters or more away from the screen.



To calculate the optimal viewing distance, you can use a general rule of thumb: The optimal viewing distance is typically 2 to 3 times the P value. For instance, for a P2.5 screen, the best viewing distance is between 5 to 7.5 meters.

What Should You Consider When Choosing an LED Screen?



When selecting an LED screen for your business or personal use, it’s important to keep several key points in mind to ensure you get the best display for your needs:



1. Purpose and Location

First, consider the purpose of the LED screen. Is it for indoor or outdoor use? Will it be viewed from a short or long distance? These factors will influence the ideal P value and resolution you should choose. Outdoor screens often have larger P values because they are viewed from a greater distance, while indoor screens, especially for close viewing, benefit from smaller P values and higher resolution.



2. Brightness

Brightness is another crucial factor. Outdoor LED screens need higher brightness levels (measured in nits) to combat sunlight and ensure visibility during the day. For indoor use, lower brightness can be sufficient.



– Outdoor LED screens: 5000 nits or higher

– Indoor LED screens: 800–1500 nits



3. Screen Size and Viewing Angle

The size of the screen will determine the overall viewing experience. Larger screens are ideal for outdoor environments where the audience is spread out. Additionally, wider viewing angles(typically over 160 degrees) are important for ensuring that your content is visible from various positions.



4. Energy Efficiency

LED screens can consume significant power, especially larger ones. Energy-efficient models not only reduce operating costs but are also more environmentally friendly. Look for models that offer power-saving features and high-efficiency LEDs.



5. Installation and Maintenance

Consider the ease of installation and maintenance. Magnetic module LED screens, for example, are designed to make installation and servicing simpler. This can significantly reduce downtime and labor costs. Ensure that the screen is compatible with the space where it will be installed.



6. Cost

Finally, budget plays a role in determining which LED screen to choose. Higher-resolution screens and those with smaller P values tend to be more expensive. However, considering the long-term investment and benefits of clarity and performance, they may be worth the extra cost.





Conclusion



In summary, understanding the key terms related to LED screens is essential for making an informed decision. The P value (pixel pitch) plays a central role in determining the screen’s resolution and optimal viewing distance. By selecting the right screen based on your specific needs—whether for clarity, distance, or environmental conditions—you can create a more engaging and effective display.



When choosing an LED screen, remember to consider the purpose, brightness, screen size, and maintenance needs to ensure that your investment results in a high-quality, long-lasting display solution. With this knowledge, you’ll be able to select the perfect LED screen to meet your needs, whether it’s for advertising, events, or any other application.



If you need an LED solution, you can contact us!

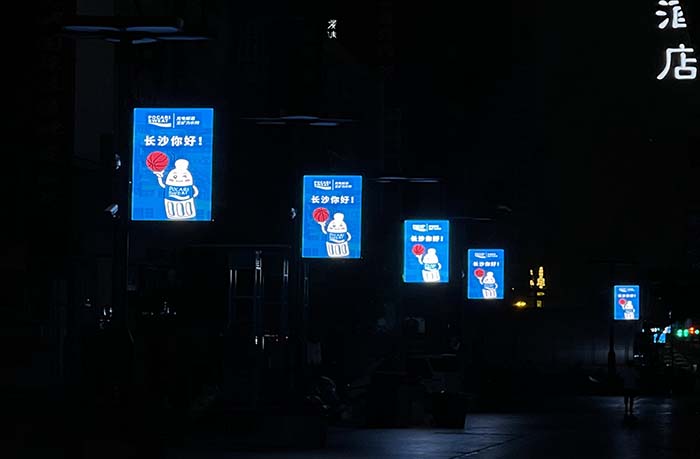

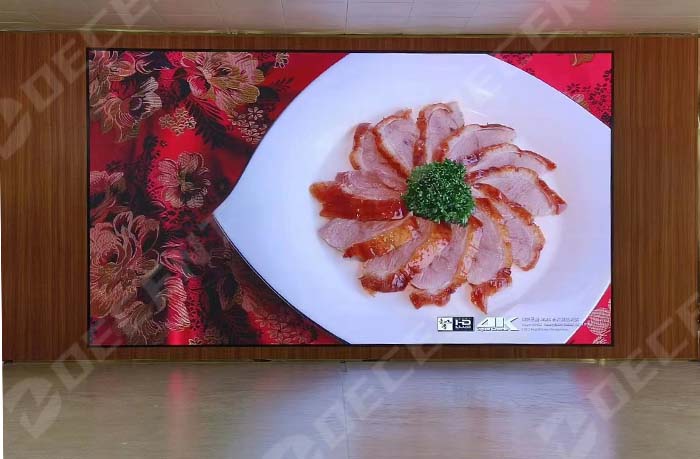

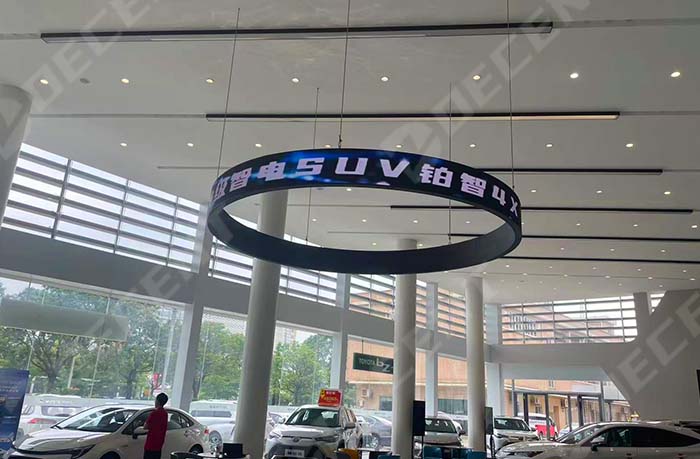

The pictures in the article are all our cases
